A reader of the “UATSTB” asked for an example of how to pyramid in the Python System BackTester (PSB).  I had original bug where you couldn’t peel off all of the positions at once.  If you tried then the PSB would crash.  I have now fixed that problem and here are the necessary lines to add on another position after the initial positions is put on.   I am using a simple moving average crossover to initiate the first position and then if the longer term moving average is positive for 4 days in a row I add on another position.  That’s it.  A max of two position only.  The system either gets reversed to the other side, stopped out or takes profits.  Attached in this post is the module that fixes the pyramiding problem and the code for this system in its entirety.   I will also put the fix in the version 2.0 download.

        upCnt = 0
        dnCnt = 0
        for j in range(4):
            if sAverage(myClose,39,i,j) > sAverage(myClose,39,i,j+1):
                upCnt += 1
            if sAverage(myClose,39,i,j) < sAverage(myClose,39,i,j+1):
                dnCnt += 1


#Long Entry Logic
        if (mp != 1) and avg1 > avg2 and prevAvg1 < prevAvg2:
            profit = 0
            price = myClose[i]
            tradeName = "DMA Buy"

#Long Pyramid Logic
        if (mp == 1) and upCnt == 4:
            profit = 0
            price = myClose[i]
            tradeName = "LongPyra"

I only put in the summary of code that will create the initial position and then add 1 more.  Notice the highlighted code from line 3 to 7.  Here I am using a simple loop to determine if the the 39-day moving average is increasing/decreasing consecutively over the past four days.  If the upCnt == 4 then I add a long position.  Notice how I test in the Long Pyramid Logic the values of mp and upCnt.  I only go long another position if I am already long 1 and upCnt == 4.

Here is a print out of some of the trades:

20040923      DMA Buy  1 127.79000       0.00       0.00
20040923     LongPyra  1 127.79000       0.00       0.00
20041006       L-Prof  2 130.79000    5800.00   14560.00
20041116    DMA Short  1 126.14000       0.00       0.00
20041119    ShortPyra  1 128.64000       0.00       0.00
20041201       S-Prof  2 125.64000    3300.00   17860.00
20050121      DMA Buy  1 127.85000       0.00       0.00
20050202     LongPyra  1 126.01000       0.00       0.00
20050222       L-Prof  2 129.01000    3960.00   21820.00
20050418    DMA Short  1 128.18000       0.00       0.00
20050419     S-MMLoss  1 130.28000   -2200.00   19620.00
20050616      DMA Buy  1 131.41000       0.00       0.00
20050621     LongPyra  1 133.02000       0.00       0.00
20050630     L-MMLoss  2 130.48000   -3670.00   15950.00
20050809    DMA Short  1 135.95000       0.00       0.00
20050810   RevShrtLiq  1 137.78000   -1930.00   14020.00
20050810      DMA Buy  1 137.78000       0.00       0.00
20050810     LongPyra  1 137.78000       0.00       0.00
20050829       L-Prof  2 140.98000    6200.00   20220.00

While I was posting the trades I found something that struck my funny – look at line 5 (highlighted).  The short pyramid trade occurs at a higher price than the initial short – at first I thought I had made a programming error.  So I thought I would double check the code and then do some debugging.  Instead of invoking the debugger which is really cool and easy to use I decided to just print out the results to the console.

        for j in range(4):
            if sAverage(myClose,39,i,j) > sAverage(myClose,39,i,j+1):
                upCnt += 1
            if sAverage(myClose,39,i,j) < sAverage(myClose,39,i,j+1):
                dnCnt += 1
            if tempDate == 20041119:
                print(myDate[i]," ",j," ",sAverage(myClose,39,i,j))

'''Output of debugging using a print statement
20041119   0   130.68692307692308
20041119   1   130.69538461538463
20041119   2   130.74871794871794
20041119   3   130.7723076923077'''

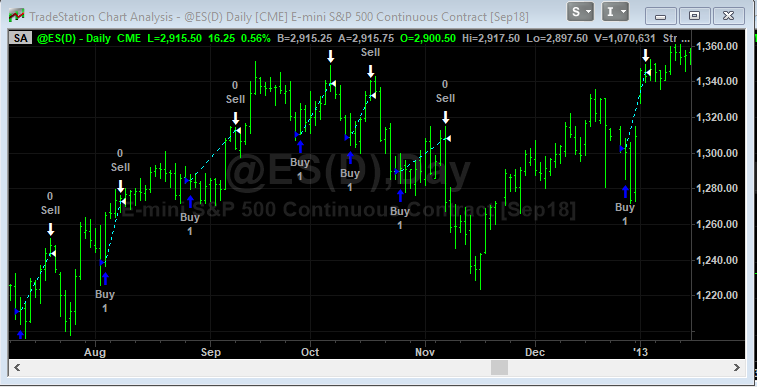

As you can see the longer term moving average is moving down event though price has increased.  Take a look at this chart and you can see multiple occurrences of this.

Remember to copy and replace the tradeClass.py in you PSB2.0 directory – this fixes the pyramid bug.  Also copy the DMAPyra.py to the same directory.  If you haven’t as of yet download the PSB from this website and buy the book for a very good description.

PostPythonCode

It has been brought to my attention by a very astute reader of the book that the ordering of the buy/sell/longliq/shortliq directives creates a potential error by giving preference to entries.  The code in the book and my examples thus far test for a true condition first in the entry logic and then in the exit logic.  Let’s say your long exit stop in the Euros is set at 11020, but your reversal is set at 11000.  The python back tester will skip the exit at 11020 and reverse at 11000.  This only happens if both stops are hit on the same day.  If this happens you will incur a 20 point additional loss.  You can prevent this by using logic similar to:

if ((mp == 0 or (mp == -1 and stb < stopb)) and myHigh[D0] >= stb) :

Notice bow I compare the price level of stb and stopb [stb – reversal and stopb – liquidation].  I added this to the long entry logic – the code is only executed if the entry is less than the exit (closer to the current market).  I am in the process of restructuring the flow so that all orders will be examined on a bar by bar basis and the ones that should take place (chronologically speaking) will do so and be reflected in the performance metrics.  This can cause multiple trades on a single bar.  This is what happens in real trading and should be reflected in the PSB.  This is where the lack of a GOTO creates a small headache in Python.  The ESB already takes this into consieration.  I will post when I finalize the code.

I have just wrapped up the latest version of the Python System Back-tester (PSB).

I have added some more portfolio performance metrics and you will see these in the performance reports.  The most useful addition is the concept of the .POR file when you run a system.  Instead of having to select your data files each time you run a system, you can build a .POR file with a list of files/markets you want to batch run.

Here is an example of a Portfolio file:

TY.CSV

CU.CSV

SB.CSV

S2.CSV

QG.CSV

QM.CSV

C2.CSV

Just make sure you put the .POR file inside the same folder that contains your testing data.  I have included a TestPortfolio.por file in version 2.0.  I would treat the different versions as completely separate applications.  Your existing .py algorithm files will need to be slightly modified to work with version 2.0.

This line of code needs to be modified from this:

systemMarket.setSysMarkInfo(sysName,myComName,listOfTrades,equity)

to this:

systemMarket.setSysMarkInfo(sysName,myComName,listOfTrades,equity,initCapital)

This line is near the bottom of the overall loop.  I added the initCapital variable so you could do position sizing and the performance metrics would reflect this initial value.

And set initCapital to a pertinent value.  I put it right below the sysName variable:

sysName = ‘BollingerBandSys’ #System Name here

initCapital = 100000 #starting account balance

Also I corrected a small bug in the main loop.  You should change this:

for i in range(len(myDate) – numBarsToGoBack,len(myDate)):

to

for i in range(len(myDate) – (numBarsToGoBack-rampUp),len(myDate)):

In another post I will show how the portfolio performance metrics have changed.  I hope you like the new version.  I will be adding a library of trading systems utilizing this new version in a few days.

If you want to download Version 2.0 – just go the the following link

PSBVersion2.0

All the unnecessary lines of the Python System Back-Testing Module have been hidden.  Only the lines that you need to develop the next great algorithm are included.  Reads sort  of like English.  This snippet introduces you to the use of functions and lists – two major components of the Python language.  If you buy my latest book – “The Ultimate Algorithmic Trading System Toolbox” then simply email me or sign up through the contact form and you will get version 2.0 for free!

How many of you believe if the last trade was a winner, the probability of the next trade being a loser is higher? The Turtles believed this and in this post I introduce the concept of filtering trades based on the prior trade’s success.

Here is a list of trades without the filter:

20090506    Turt20Buy  1  91.75000       0.00       0.00
20090622   Long10-Liq  1 103.14000   11290.00   11290.00
20090702   Turt20Shrt  1 102.26000       0.00       0.00
20090721   Shrt10-Liq  1 100.80000    1360.00   12650.00
20090803    Turt20Buy  1 104.61000       0.00       0.00
20090817   Long10-Liq  1 101.99000   -2720.00    9930.00
20090824    Turt20Buy  1 107.71000       0.00       0.00
20090902   Long10-Liq  1 100.97000   -6840.00    3090.00
20090902   Turt20Shrt  1 100.10000       0.00       0.00
20090917   Shrt10-Liq  1 105.87000   -5870.00   -2780.00
20090924   Turt20Shrt  1 100.02000       0.00       0.00
20091008   Shrt10-Liq  1 104.72000   -4800.00   -7580.00
20091012    Turt20Buy  1 106.13000       0.00       0.00
20091030   Long10-Liq  1 109.43000    3200.00   -4380.00
20091113   Turt20Shrt  1 108.95000       0.00       0.00
20091223   Shrt10-Liq  1 106.03000    2820.00   -1560.00

And here are the trades with filter engaged:

20090506    Turt20Buy  1  91.75000       0.00       0.00
20090622   Long10-Liq  1 103.14000   11290.00   11290.00
20090824    Turt20Buy  1 107.71000       0.00       0.00
20090902   Long10-Liq  1 100.97000   -6840.00    4450.00
20090902   Turt20Shrt  1 100.10000       0.00       0.00
20090917   Shrt10-Liq  1 105.87000   -5870.00   -1420.00
20090924   Turt20Shrt  1 100.02000       0.00       0.00
20091008   Shrt10-Liq  1 104.72000   -4800.00   -6220.00
20091012    Turt20Buy  1 106.13000       0.00       0.00
20091030   Long10-Liq  1 109.43000    3200.00   -3020.00
20100126   Turt20Shrt  1 104.09000       0.00       0.00
20100218   Shrt10-Liq  1 108.12000   -4130.00   -7150.00
20100219    Turt20Buy  1 109.37000       0.00       0.00
20100322   Long10-Liq  1 108.96000    -510.00   -7660.00

Check for yourself – you will notice that a trade after a winner is skipped. Trades are not picked back up until a loser is reported. Trading like this is quite easy but backtesting is quite a bit more difficult. I talk about this in the book where you have to switch between actual trading and simulated trading. The beauty of the Python BackTester is that it is somewhat easy to incorporate this into the testing logic. All you have to do is determine if the prior real or simulated trade is a loser. If it isn’t then you still must keep track of all trades, but don’t book the trades that follow the winner. I have created a testing module that does just that. Here is a snippet of the code:

# Short Logic

        if (mp == 0 or mp == 1) and barsSinceEntry > 1 and myLow[i] <= ll20: profit = 0 price = min(myOpen[i],ll20) numShares = max(1,int(dollarRiskPerTrade/(atrVal*myBPV))) if mp >= 1:

            profit,trades,curShares=exitPos(price,myDate[i],"RevLongLiq",curShares,lastTradeLoser)

                if lastTradeLoser < 1 : listOfTrades.append(trades) todaysCTE = profit if profit > 0 :

                    if lastTradeLoser < 0 : lastTradeLoser = 0 if lastTradeLoser > 0 : lastTradeLoser +=1

                else:

                    lastTradeLoser = -1

                mp = 0

            mp -= 1

            tradeName = "Turt20Shrt"

            marketPosition[i] = mp

            entryPrice.append(price)

            entryQuant.append(numShares)

            curShares = curShares + numShares

            trades = tradeInfo('sell',myDate[i],tradeName,entryPrice[-1],numShares,1)

            barsSinceEntry = 1

            if lastTradeLoser < 1:

               listOfTrades.append(trades) <strong># book the trade if lastTradeLoser < 1 else don't</strong>

               totProfit += profit         <strong># book the profit from the trade</strong>

I will include this in an update to the Python backtester for registered users of this site.
